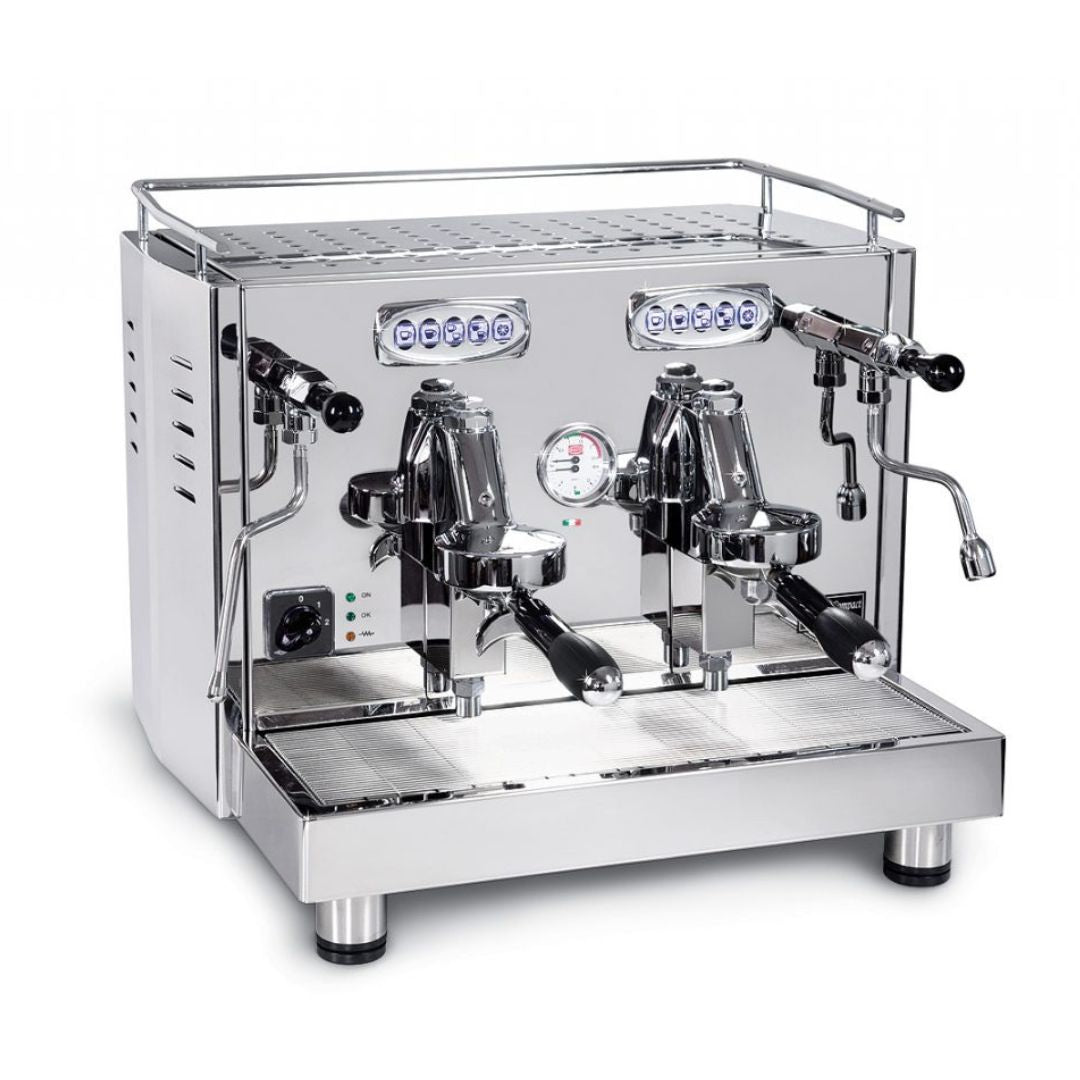

Quick Mill Electronic Uragano

TECHNICAL CHARACTERISTICS:

• Boiler with transversal exchanger Dia.50 mm 7 Lt.
• Water mains connection with 3/8 G connection nipple

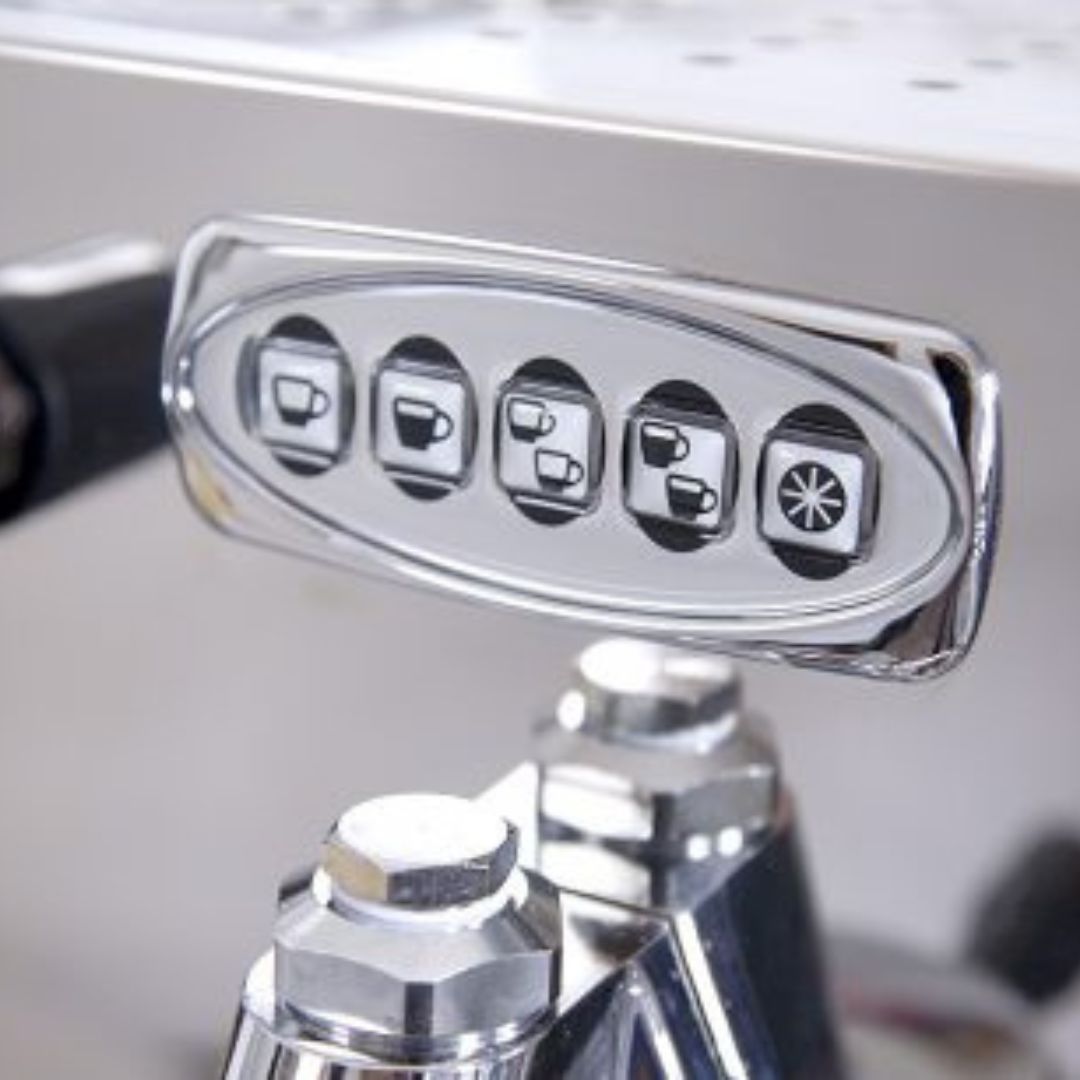

• 5 key push-button panel (1 espresso, 2 espresso, 1 long espresso, 2 long espresso, programming)

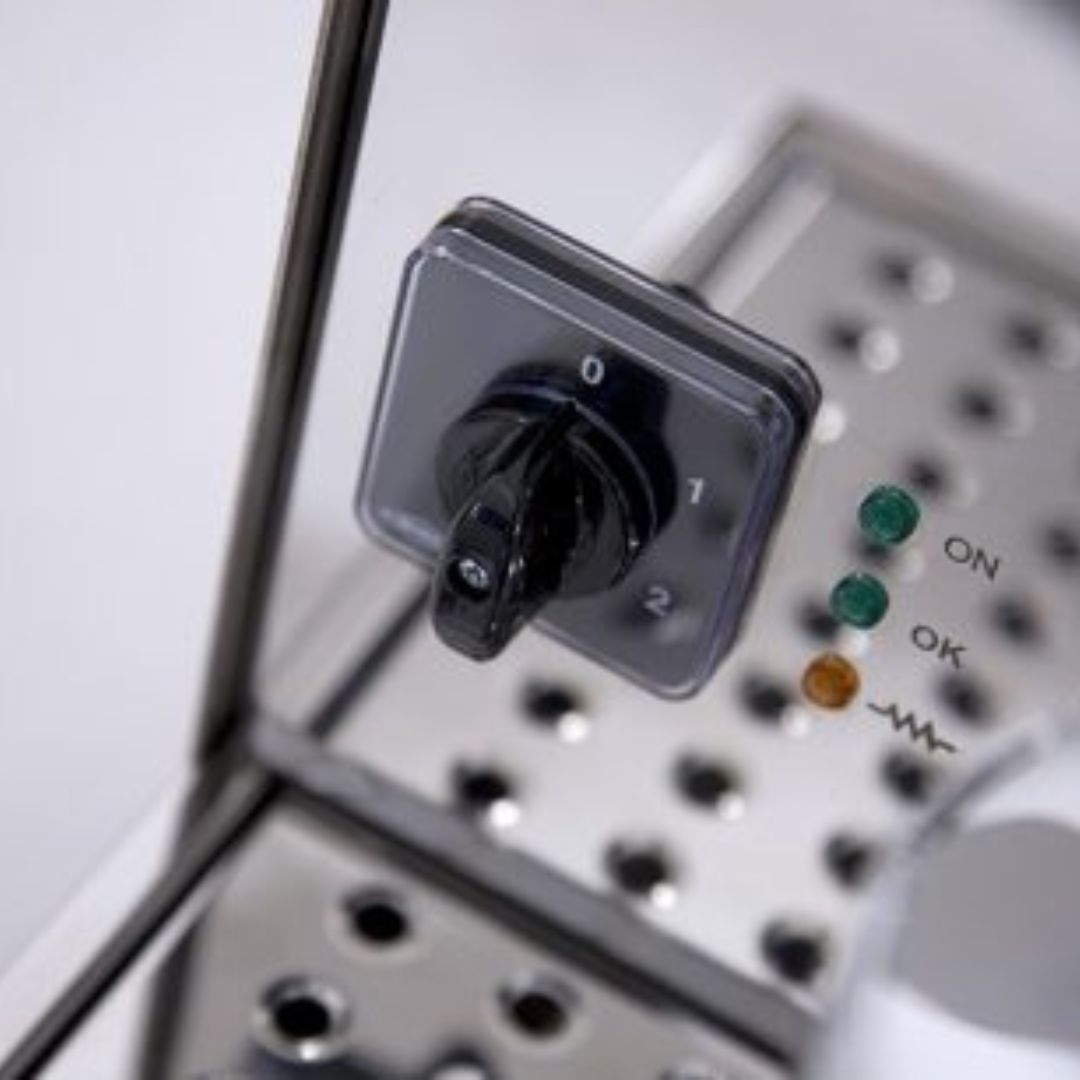

• Luminous indicators which indicate: Machine ON – minimum boiler level – heating element working)
• 4 unit temperature adjustments (aluminium knob) and 3-way solenoid valves with ruby seal Parker
• Positive-displacement pump with externally adjustable by-pass
• Dual scale pressure gauge (pump and boiler pressure)
• Stainless steel steam nozzle; • Stainless steel Hot water nozzle
• Electronic management of: Coffee doses (volumetric), minimum and maximum hot water level
• Valve for emptying boiler
• Automatic refilling
• Sirai pressure switch
• AISI 304 BA body
• Frame in stainless steel 403
• Safety thermostat with external reset
• Electronic dosage with Gicar board
• Boiler recharge with Gicar board
• Certified safety valve
• Expansions valve
• It is also possible to have 12lts. boiler with external pump, heater 3000 or 4500 at choice
